The cardiac action potential is a brief change in voltage (membrane potential) across the cell membrane of heart cells. This is caused by the movement of charged atoms (called ions) between the inside and outside of the cell, through proteins called ion channels. The cardiac action potential differs from action potentials found in other types of electrically excitable cells, such as nerves. Action potentials also vary within the heart; this is due to the presence of different ion channels in different cells (see below).

Unlike the action potential in skeletal muscle cells, the cardiac action potential is not initiated by nervous activity. Instead, it arises from a group of specialized cells, that have automatic action potential generation. In healthy hearts, these cells are found in the right atrium and are called the sinoatrial node (SAN; see below for more details). They produce roughly 60-100 action potentials every minute. This action potential passes along the cell membrane causing the cell to contract, therefore the activity of the SAN results in a resting heart rate of roughly 60-100 beats per minute. All cardiac muscle cells are electrically linked to one another, by structures known as gap junctions (see below) which allow the action potential to pass from one cell to the next. This means that all atrial cells can contract together, and then all ventricular cells.

Rate dependence of the action potential is a fundamental property of cardiac cells and alterations can lead to severe cardiac diseases including cardiac arrhythmia and sometimes sudden death. Action potential activity within the heart can be recorded to produce an electrocardiogram (ECG). This is a series of upward and downward spikes (labelled P, Q, R, S and T) that represent the depolarization (voltage becoming more positive) and repolarization (voltage becoming more negative) of the action potential in the atria and ventricles (see electrocardiography for more details).


Video Cardiac action potential



Overview

Similar to skeletal muscle, the resting membrane potential (voltage when the cell is not electrically excited) of ventricular cells, is around -90 millivolts (mV; 1mV=0.001V) i.e. the inside of the membrane is more negative than the outside. The main ions found outside the cell at rest are: sodium (Na+), and chloride (Cl-), whereas inside the cell it is mainly potassium (K+).

The action potential begins with the voltage becoming more positive; this is known as depolarization and is mainly due to the opening of sodium channels that allow Na+ to flow into the cell. After a delay (known as the absolute refractory period; see below), termination of the action potential then occurs, as potassium channels open, allowing K+ to leave the cell and causing the membrane potential to return to negative, this is known as repolarization. Another important ion is calcium (Ca2+), which can be found outside of the cell as well as inside the cell, in a calcium store known as the sarcoplasmic reticulum (SR). Release of Ca2+ from the SR, via a process called calcium-induced calcium release, is vital for the plateau phase of the action potential (see phase 2, below) and is a fundamental step in cardiac excitation-contraction coupling.

There are important physiological differences between the cells that spontaneously generate the action potential (pacemaker cells; e.g. SAN) and those that simply conduct it (non-pacemaker cells; e.g. ventricular myocytes). The specific differences in the types of ion channels expressed and mechanisms by which they are activated results in differences in the configuration of the action potential waveform, as shown in figure 2.


Maps Cardiac action potential



Phases of the cardiac action potential

The standard model used to understand the cardiac action potential is that of the ventricular myocyte. Outlined below are the five phases of the ventricular myocyte action potential, with reference also to the SAN action potential.

Phase 4

In the ventricular myocyte, phase 4 occurs when the cell is at rest, in a period known as diastole. In the standard non-pacemaker cell the voltage during this phase is more or less constant, at roughly -90mV. The resting membrane potential results from the flux of ions having flowed into the cell (e.g. sodium and calcium) and the ions having flowed out of the cell (e.g. potassium, chloride and bicarbonate) being perfectly balanced.

The leakage of these ions, across the membrane is maintained by the activity of pumps which serve to keep the intracellular concentration more or less constant, so for example, the sodium (Na+) and potassium (K+) ions are maintained by the sodium-potassium pump which uses energy (in the form of adenosine triphosphate (ATP)) to move three Na+ out of the cell and two K+ into the cell. Another example is the sodium-calcium exchanger which, removes one Ca2+ from the cell for three Na+ into the cell.

During this phase the membrane is most permeable to K+, which can travel into or out of cell through leak channels, including the inwardly rectifying potassium channel. Therefore, the resting membrane potential is mainly determined by K+ equilibrium potential and can be calculated using the Goldman-Hodgkin-Katz voltage equation.

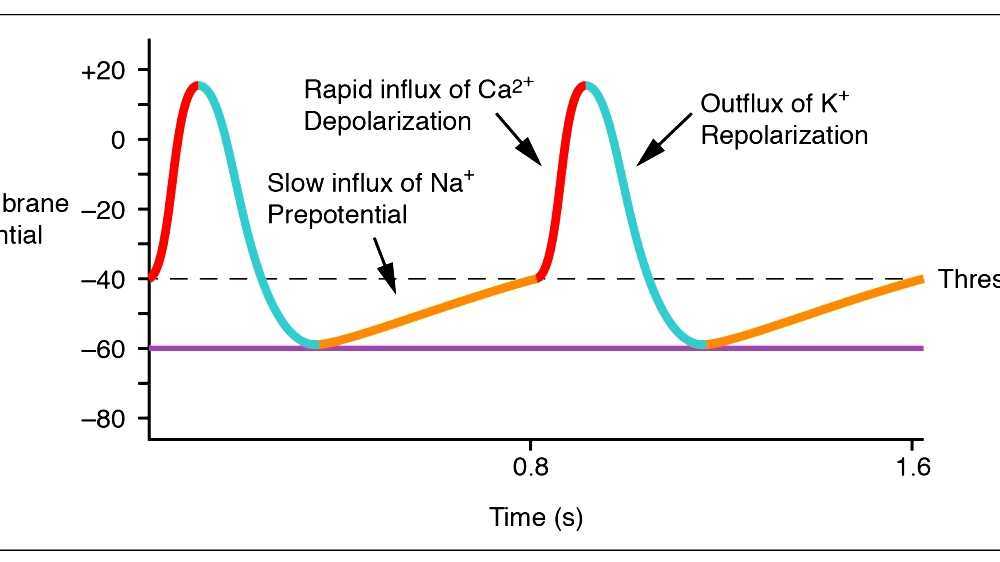

However, pacemaker cells are never at rest. In these cells, phase 4 is also known as the pacemaker potential. During this phase, the membrane potential slowly becomes more positive, until it reaches a set value (around -40mV; known as the threshold potential) or until it is depolarized by another action potential, coming from a neighboring cell.

The pacemaker potential is thought to be due to a group of channels, referred to as HCN channels (Hyperpolarisation-activated cyclic nucleotide-gated). These channels open at very negative voltages (i.e. immediately after phase 3 of the previous action potential; see below) and allow the passage of both K+ and Na+ into the cell. Due to their unusual property of being activated by very negative membrane potentials, the movement of ions through the HCN channels is referred to as the funny current (see below).

Another theory regarding the pacemaker potential is the 'calcium clock'. Here, calcium is released from the sarcoplasmic reticulum, within the cell. This calcium then increases activation of the sodium-calcium exchanger resulting in the increase in membrane potential (as a +3 charge is being brought into the cell (by the 3Na+) but only a +2 charge is leaving the cell (by the Ca2+) therefore there is a net charge of +1 entering the cell). This calcium is then pumped back into the cell and back into the SR via calcium pumps (including the SERCA).

Phase 0

This phase consists of a rapid, positive change in voltage across the cell membrane (depolarization) lasting less than 2ms, in ventricular cells and 10/20ms in SAN cells. This occurs due to a net flow of positive charge into the cell.

In non-pacemaker cells (i.e. ventricular cells) this is produced predominantly by the activation of Na+ channels, which increases the membrane conductance (flow) of Na+ (gNa). These channels are activated when an action potential arrives from a neighbouring cell, through gap junctions. When this happens, the voltage within the cell increases slightly. If this increased voltage reaches a certain value (threshold potential; ~-70mV) it causes the Na + channels to open. This produces a larger influx of sodium into the cell, rapidly increasing the voltage further (to ~ +50mV; i.e. towards the Na+ equilibrium potential). However, if the initial stimulus is not strong enough, and the threshold potential is not reached, the rapid sodium channels will not activate and an action potential will not be produced, this is known as the All-or-none law . The slope of phase 0 on the action potential waveform (see figure 2) represents the maximum rate of voltage change, of the cardiac action potential and is known as dV/dtmax.

In pacemaker cells (e.g. sinoatrial node cells), however, the increase in membrane voltage is mainly due to activation of L-type calcium channels. These channels are also activated by an increase in voltage, however this time it is either due to the pacemaker potential (phase 4) or an oncoming action potential. The L-type calcium channels activate towards the end of the pacemaker potential (and therefore contribute to the latter stages of the pacemaker potential). The L-type calcium channels activate slower than the sodium channels, in the ventricular cell, therefore, the depolarization slope in the pacemaker action potential waveform is less steep than that in the non-pacemaker action potential waveform.

Phase 1

This phase begins with the rapid inactivation of the Na + channels by the inner gate (inactivation gate), reducing the movement of sodium into the cell. At the same time potassium channels (called Ito1) open and close rapidly, allowing for a brief flow of potassium ions out of the cell, making the membrane potential slightly more negative. This is referred to as a 'notch' on the action potential waveform.

There is no obvious phase 1 present in pacemaker cells.

Phase 2

This phase is also known as the "plateau" phase due to the membrane potential remaining almost constant, as the membrane very, very slowly begins to repolarize. This is due to the near balance of charge moving into and out of the cell. During this phase delayed rectifier potassium channels allow potassium to leave the cell whilst L-type calcium channels (activated by the flow of sodium during phase 0), allow the movement of calcium into the cell. This calcium, binds to and opens more calcium channels (called ryanodine receptors) located on the sarcoplasmic reticulum within the cell, allowing the flow of calcium out of the SR. This calcium is responsible for contraction of the heart. Not only that, but it also activates chloride channels called Ito2, which allow Cl- to enter the cell. Together the movement of both Ca2+ and Cl- oppose the voltage change caused by K+. As well as this the increased calcium concentration increases the activity of the sodium-calcium exchanger, and the increase in sodium entering the cell increases activity of the sodium-potassium pump. The movement of all of these ions results in the membrane potential remaining relatively constant. This phase is responsible for the large duration of the action potential and is important in preventing irregular heartbeat (cardiac arrhythmia).

There is no plateau phase present in pacemaker action potentials.

Phase 3

During phase 3 (the "rapid repolarization" phase) of the action potential, the L-type Ca2+ channels close, while the slow delayed rectifier (IKs) K+ channels remain open as more potassium leak channels open. This ensures a net outward positive current, corresponding to negative change in membrane potential, thus allowing more types of K+ channels to open. These are primarily the rapid delayed rectifier K+ channels (IKr) and the inwardly rectifying K+ current, IK1. This net outward, positive current (equal to loss of positive charge from the cell) causes the cell to repolarize. The delayed rectifier K+ channels close when the membrane potential is restored to about -85 to -90 mV, while IK1 remains conducting throughout phase 4, which helps to set the resting membrane potential

Ionic pumps as discussed above, like the sodium-calcium exchanger and the sodium-potassium pump restore ion concentrations back to balanced states pre-action potential. This means that the intracellular calcium is pumped out, which was responsible for cardiac myocyte contraction. Once this is lost the contraction stops and myocytic cells relax, which in turn relaxes the heart muscle.

During this phase, the action potential fatefully commits to repolarisation. This begins with the closing of the L-type Ca2+channels, while the K+ channels (from phase 2) remain open. The main potassium channels involved in repolarization are the delayed rectifiers (IKr) and (IKs) as well as the inward rectifier (IK1). Overall there is a net outward positive current, that produces negative change in membrane potential. The delayed rectifier channels close when the membrane potential is restored to resting potential, whereas the inward rectifier channels and the ion pumps remain active throughout phase 4, resetting the resting ion concentrations. This means that the calcium used for muscle contraction, is pumped out of the cell, resulting in muscle relaxation.

In the sinoatrial node, this phase is also due to the closure of the L-type calcium channels, preventing inward flux of Ca2+ and the opening of the rapid delayed rectifier potassium channels (IKr).


Cardiac Action Potential, Animation. - YouTube
src: i.ytimg.com


Refractory period

Cardiac cells have two refractory periods, the first from the beginning of phase 0 until part way through phase 3; this is known as the absolute refractory period during which it is impossible for the cell to produce another action potential. This is immediately followed, until the end of phase 3, by a relative refractory period, during which a stronger-than-usual stimulus is required to produce another action potential.

These two refractory periods are caused by changes in the states of sodium and potassium channels. The rapid depolarization of the cell, during phase 0, causes the membrane potential to approach sodium's equilibrium potential (i.e. the membrane potential at which sodium is no longer drawn into or out of the cell). As the membrane potential becomes more positive, the sodium channels then close and lock, this is known as the "inactivated" state. During this state the channels cannot be opened regardless of the strength of the excitatory stimulus--this gives rise to the absolute refractory period. The relative refractory period is due to the leaking of potassium ions, which makes the membrane potential more negative (i.e. it is hyperpolarised), this resets the sodium channels; opening the inactivation gate, but still leaving the channel closed. This means that it is possible to initiate an action potential, but a stronger stimulus than normal is required.


Phase 1 - Stepwards
src: www.stepwards.com


Gap junctions

Gap junctions allow the action potential to be transferred from one cell to the next (they are said to electrically couple neighbouring cardiac cells). They are made from the connexin family of proteins, that form a pore through which ions (including Na+, Ca2+ and K+) can pass. As potassium is highest within the cell, it is mainly potassium that passes through. This increased potassium in the neighbour cell causes the membrane potential to increase slightly, activating the sodium channels and initiating an action potential in this cell. (A brief chemical gradient driven efflux of Na+ through the connexon at peak depolarization causes the conduction of cell to cell depolarization, not potassium.) These connections allow for the rapid conduction of the action potential throughout the heart and are responsible for allowing all of the cells in the atria to contract together as well as all of the cells in the ventricles. Uncoordinated contraction of heart muscles is the basis for arrhythmia and heart failure.


Cardiac Action Potentials 3-3 - ECG / EKG Interpretation -- BASIC ...
src: i.ytimg.com


Channels

Ion channels are proteins, that change shape in response to different stimuli to either allow or prevent the movement of specific ions across a membrane (they are said to be selectively permeable). Stimuli, which can either come from outside the cell or from within the cell, can include the binding of a specific molecule to a receptor on the channel (also known as ligand-gated ion channels) or a change in membrane potential around the channel, detected by a sensor (also known as voltage-gated ion channels) and can act to open or close the channel. The pore formed by an ion channel is aqueous (water filled) and allows the ion to rapidly travel across the membrane. Ion channels can be selective for specific ions, so there are Na+, K+, Ca2+, and Cl- specific channels. They can also be specific for a certain charge of ions (i.e. positive or negative).

Each channel is coded by a set of DNA instructions that tell the cell how to make it. These instructions are known as a gene. Figure 3 shows the important ion channels involved in the cardiac action potential, the current (ions) that flows through the channels, their main protein subunits (building blocks of the channel), some of their controlling genes that code for their structure and the phases they are active during the cardiac action potential. Some of the most important ion channels involved in the cardiac action potential are described briefly below.

Hyperpolarisation activated cyclic nucleotide gated (HCN) channels

Located mainly in pacemaker cells, these channels become active at very negative membrane potentials and allow for the passage of both Na+ and K+ into the cell (this movement is known as a funny current, If). These poorly selective, cation (positively charged ions) channels conduct more current as the membrane potential becomes more negative (hyperpolarised). The activity of these channels in the SAN cells causes the membrane potential to depolarise slowly and so they are thought to be responsible for the pacemaker potential. Sympathetic nerves directly affect these channels, resulting in an increased heart rate (see below).

The fast Na+ channel

These sodium channels are voltage-dependent, opening rapidly due to depolarization of the membrane, which usually occurs from neighboring cells, through gap junctions. They allow for a rapid flow of sodium into the cell, depolarizing the membrane completely and initiating an action potential. As the membrane potential increases, these channels then close and lock (become inactive). Due to the rapid influx sodium ions (steep phase 0 in action potential waveform) activation and inactivation of these channels happens almost at exactly the same time. During the inactivation state, Na+ cannot pass through (absolute refractory period). However they begin to recover from inactivation as the membrane potential becomes more negative (relative refractory period).

Potassium channels

The two main types of K+ channels in cardiac cells are inward rectifiers and voltage-gated potassium channels.

Inwardly rectifying potassium channels (Kir) favour the flow of K+ into the cell. This influx of potassium, however, is larger when the membrane potential is more negative than the equilibrium potential for K+ (~-90mV). As the membrane potential becomes more positive (i.e. during cell stimulation from a neighbouring cell), the flow of potassium into the cell via the Kir decreases. Therefore, Kir is responsible for maintaining the resting membrane potential and initiating the depolarization phase. However, as the membrane potential continues to become more positive, the channel begins to allow the passage of K+ out of the cell. This outward flow of potassium ions at the more positive membrane potentials means that the Kir can also aid the final stages of repolarisation.

The voltage-gated potassium channels (Kv) are activated by depolarization. One of the currents produced by these channels include Ito1 (to= transient outward). These currents have two components, both of which activate very fast, however one inactivates faster than the other (Ito,fast and Ito,slow). These channels contribute to the early repolarization phase (phase 1) of the action potential.

Kv also includes a group of channels called the delayed rectifier potassium channels. There are three main currents produced by these channels, which are named based on the speed at which they activate: IKs, IKr and IKur (s=slow, r= rapid and ur= ultra-rapid). These currents are responsible for the plateau phase.

Calcium channels

There are two voltage-gated calcium channels within cardiac muscle: L-type calcium channels ('L' for Long-lasting) and T-type calcium channels ('T' for Transient, i.e. short). L-type channels are more common and are most densely populated within the t-tubule membrane of ventricular cells, whereas the T-type channels are found mainly within atrial and pacemaker cells, but still to a lesser degree than L-type channels.

These channels respond to voltage changes across the membrane differently: L-type channels are activated by more positive membrane potentials, take longer to open and remain open longer than T-type channels. This means that the T-type channels contribute more to depolarization (phase 0) whereas L-type channels contribute to the plateau (phase 2).


Mechanisms of Cardiac Arrhythmias | Revista Española de ...
src: www.revespcardiol.org


Autorhythmicity

Electrical activity that originates from the sinoatrial node is propagated via the His-Purkinje network, the fastest conduction pathway within the heart. The electrical signal travels from the sinoatrial node (SAN), which stimulates the atria to contract, to the atrioventricular node (AVN) which slows down conduction of the action potential, from the atria to the ventricles. This delay allows the ventricles to fully fill with blood before contraction. The signal then passes down through a bundle of fibres called the bundle of His, located between the ventricles, and then to the purkinje fibers at the bottom (apex) of the heart, causing ventricular contraction. This is known as the electrical conduction system of the heart, see figure 4.

Other than the SAN, the AVN and purkinje fibres also have pacemaker activity and can therefore spontaneously generate an action potential. However, these cells usually do not depolarize spontaneously, simply because, action potential production in the SAN is faster. This means that before the AVN or purkinje fibres reach the threshold potential for an action potential, they are depolarized by the oncoming impulse from the SAN This is called "overdrive suppression". Pacemaker activity of these cells is vital, as it means that if the SAN were to fail, then the heart could continue to beat, albeit at a lower rate (AVN= 40-60 beats per minute, purkinje fibres = 20-40 beats per minute). These pacemakers will keep a patient alive until the emergency team arrives.

An example of premature ventricular contraction, is the classic athletic heart syndrome. Sustained training of athletes causes a cardiac adaptation where the resting SAN rate is lower (sometimes around 40 beats per minute). This can lead to atrioventricular block, where the signal from the SAN is impaired in its path to the ventricles. This leads to uncoordinated contractions between the atria and ventricles, without the correct delay in between and in severe cases can result in sudden death.

Regulation by the autonomic nervous system

The speed of action potential production in pacemaker cells is affected, but not controlled by the autonomic nervous system.

The sympathetic nervous system (nerves dominant during the bodies fight or flight response) increase heart rate (positive chronotropy), by decreasing the time to produce an action potential in the SAN. Nerves from the spinal cord release a molecule called noradrenaline, which binds to and activates receptors on the pacemaker cell membrane called ?1 adrenoceptors. This activates a protein, called a Gs-protein (s for stimulatory). Activation of this G-protein leads to increased levels of cAMP in the cell (via the cAMP pathway). cAMP binds to the HCN channels (see above), increasing the funny current and therefore increasing the rate of depolarization, during the pacemaker potential. The increased cAMP also increases the opening time of L -type calcium channels, increasing the Ca2+ current through the channel, speeding up phase 0.

The parasympathetic nervous system (nerves dominant while the body is resting and digesting) decreases heart rate (negative chronotropy), by increasing the time taken to produce an action potential in the SAN. A nerve called the vagus nerve, that begins in the brain and travels to the sinoatrial node, releases a molecule called acetylcholine (ACh) which binds to a receptor located on the outside of the pacemaker cell, called an M2 muscarinic receptor. This activates a Gi-protein (I for inhibitory), which is made up of 3 subunits (?, ? and ?) which, when activated, separate from the receptor. The ? and ? subunits activate a special set of potassium channels, increasing potassium flow out of the cell and decreasing membrane potential, meaning that the pacemaker cells take longer to reach their threshold value. The Gi-protein also inhibits the cAMP pathway therefore reducing the sympathetic effects caused by the spinal nerves.


047 Action Potentials and Contraction in Cardiac Muscle Cells ...
src: i.ytimg.com
